Equipped with an independent MPPT (Maximum Power Point Tracking) algorithm, the system effectively mitigates mismatch losses caused by shading, soiling, or module degradation, delivering up to 30% higher energy yield. Real-time module monitoring enables remote fault localization, reducing O&M costs by up to 50%. Fully compliant with NEC Rapid Shutdown requirements (within 30 seconds).

A robust three-level protection architecture, incorporating a patented temperature-sensitive hardware protection module, ensures long-term stable and safe operation.

Based on AdvanSol’s patented Super-HPLC technology, the system operates without communication cabling and supports unlimited communication distance between the data controller and the most remote module controller, enabling reliable long-range data transmission.

Certified to UL1741 and UL3741, and compliant with IEC, CE, FCC, and other global standards.

Supports mixed installation with MR series module controllers, allowing partial deployment of MRO units without requiring full-system installation, effectively reducing overall system cost.

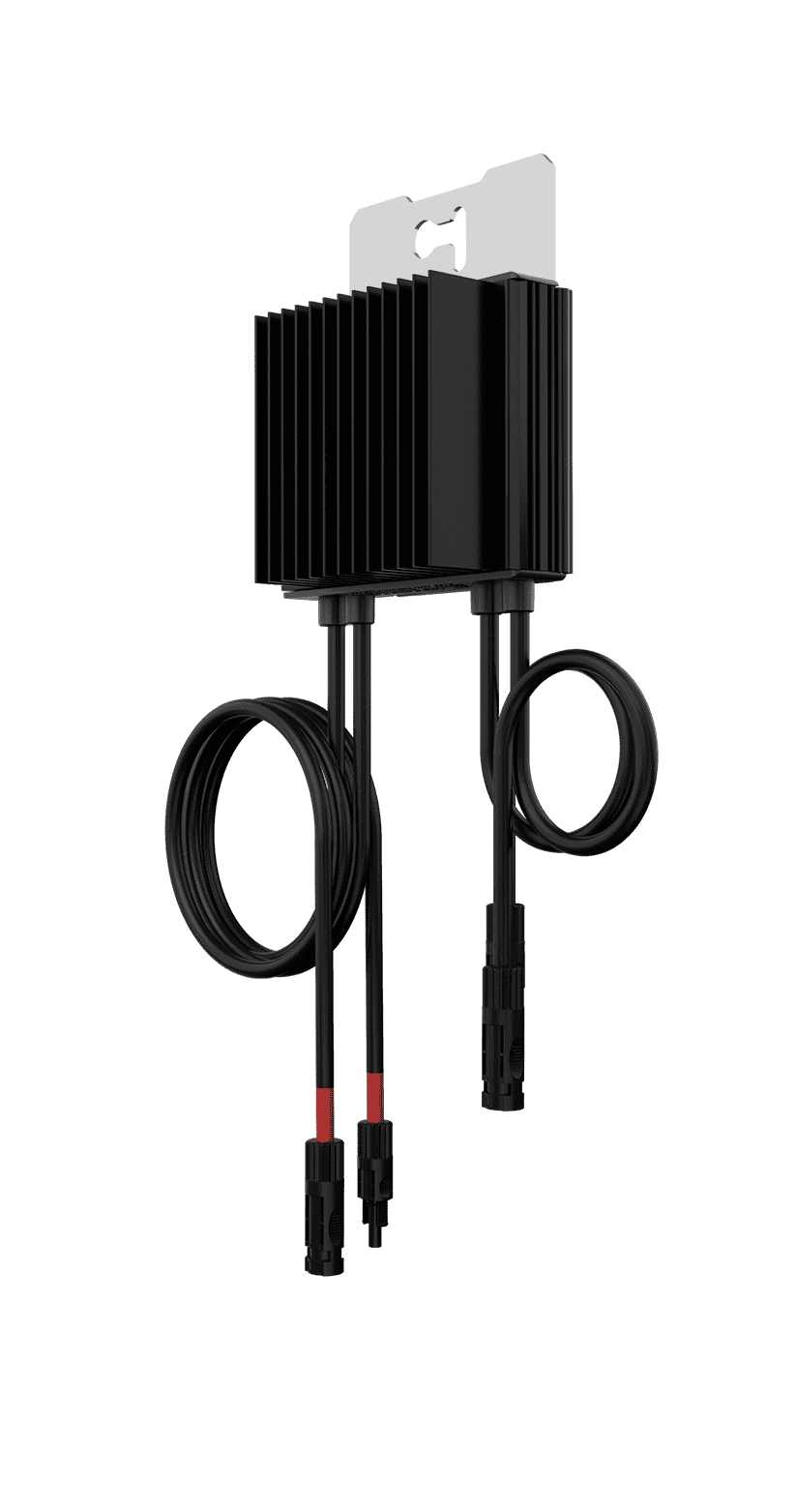

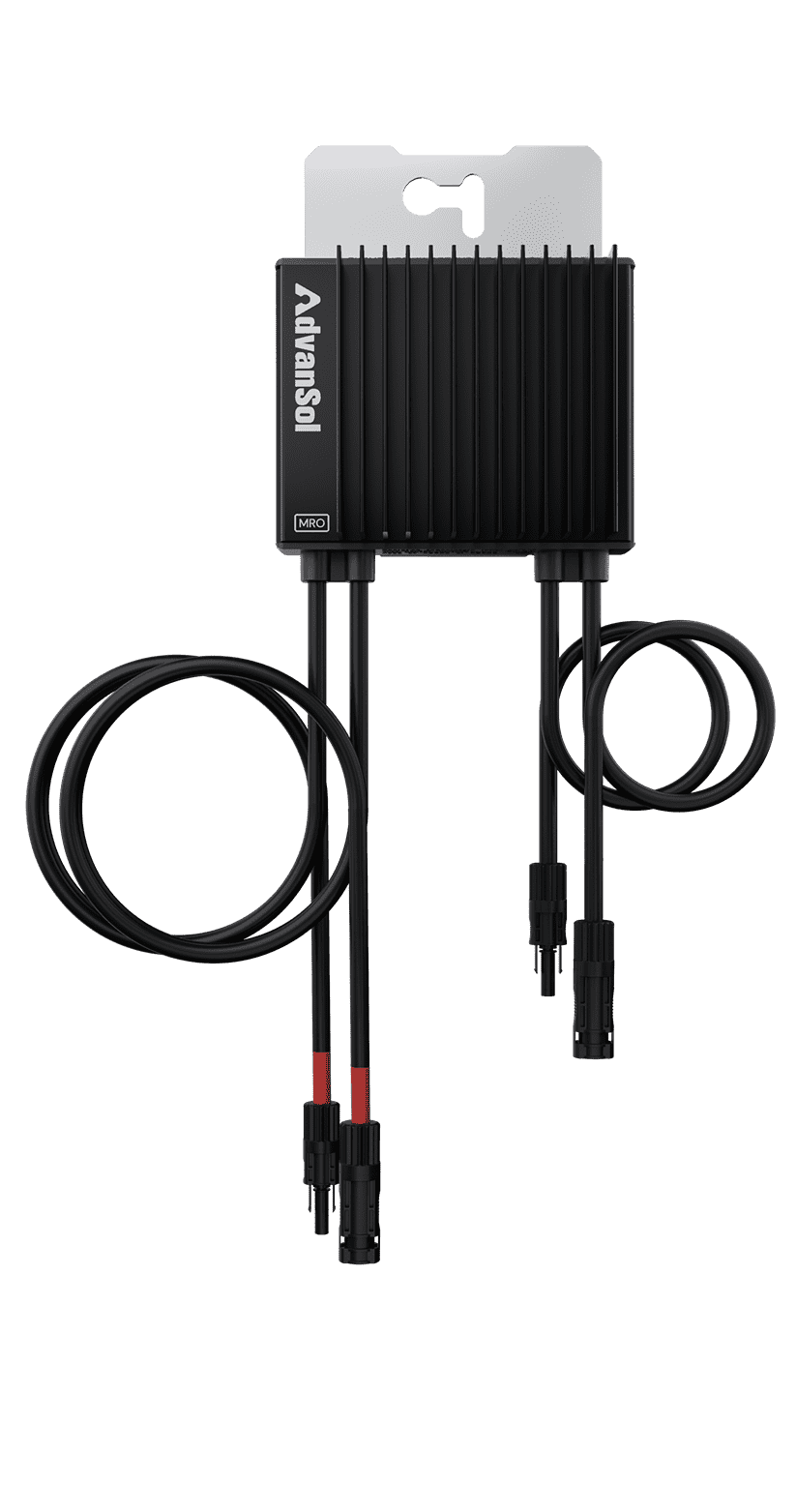

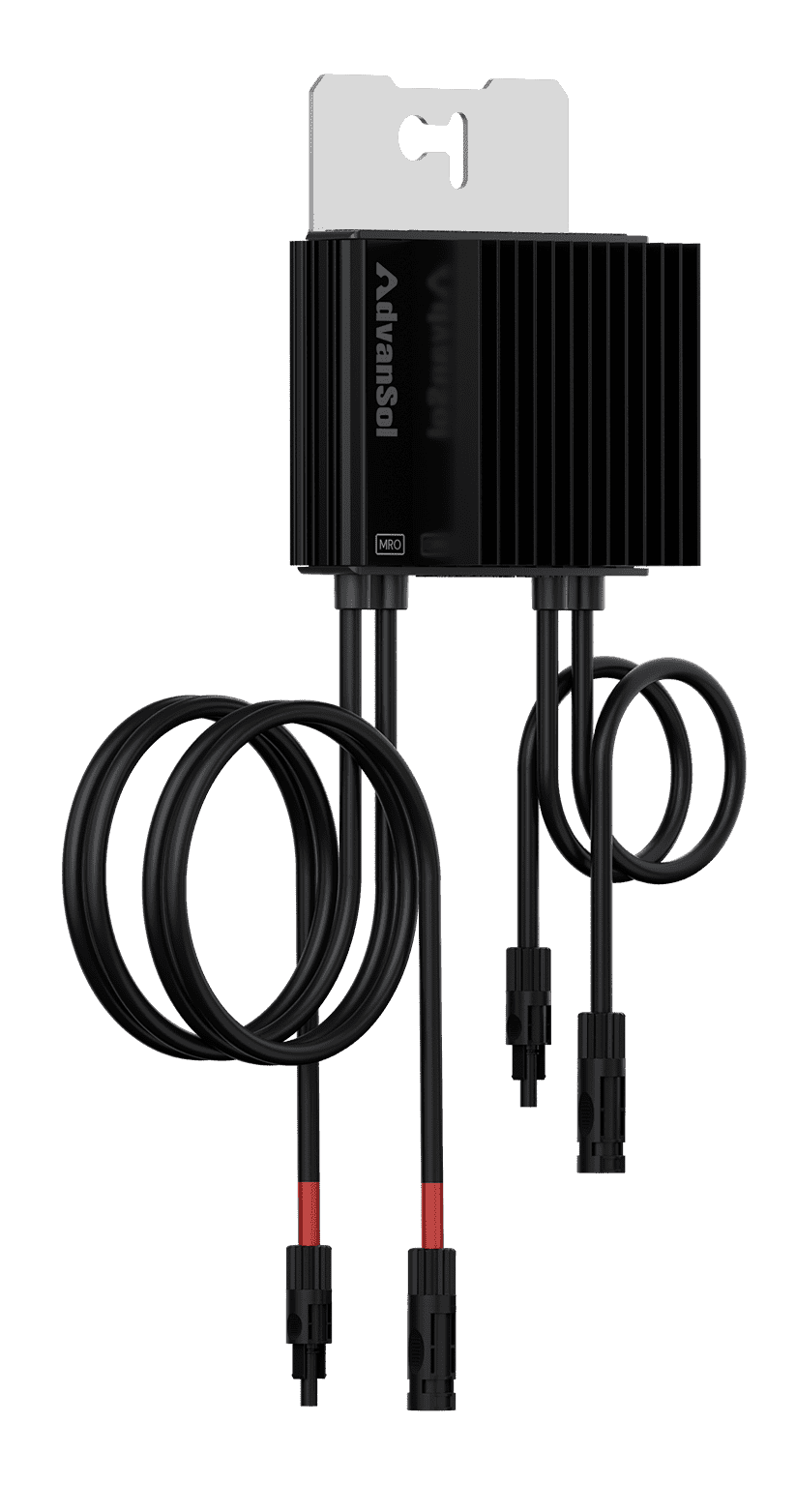

Rated IP68 with a full aluminum die-cast integrated enclosure, offering high-temperature resistance, corrosion resistance, and long-term reliability under extreme environmental conditions. Materials comply with UL94 V-5A flame-retardant standards.
